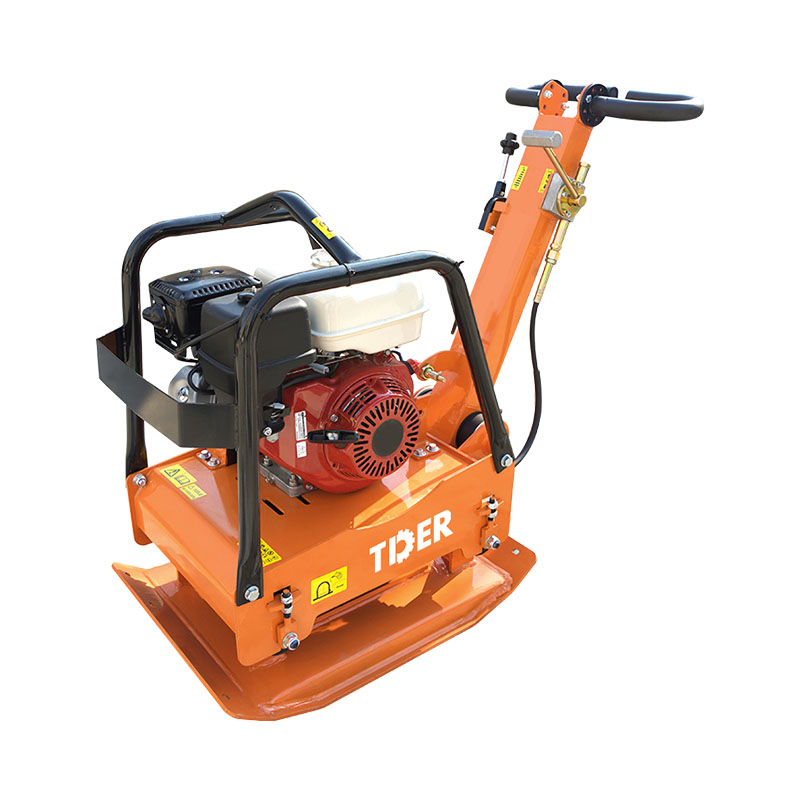

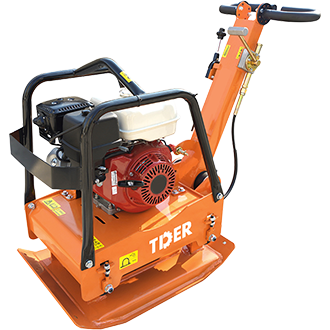

Vibratory Plate
TRP170
Caractéristiques
Adjustable Handle for Comfortable Direction Control
The TRP170 features a mechanically controlled handle that allows the operator to guide the machine smoothly in both forward and backward movement. Its adjustable height helps accommodate different operators and makes prolonged compaction work more comfortable.
Dual-Shaft Vibrator for Efficient Compaction
The robust vibrator assembly uses dual eccentric shafts to generate effective vibration across the plate. This design supports efficient compaction performance and helps the TRP170 deliver consistent results during repeated passes.
High-Strength Steel Plate for Demanding Jobsite Conditions
Built with ductile high-strength steel plates, the TRP170 is designed to withstand impact and vibration during daily compaction work. The plate surface also helps reduce material buildup, keeping the working area cleaner during operation.
Sealed Belt Cover for Better Component Protection
A sealed belt cover helps prevent sand, soil and other debris from entering the belt drive area. This added protection helps reduce contamination of key drive components during dusty and abrasive compaction applications.
Center Lift Point for Easier Transportation
A centrally positioned lifting bar provides a balanced lifting point for loading and unloading. Combined with its 170 kg operating weight, the TRP170 can be handled more conveniently when moving between vehicles and different work areas.
Optional Extensions and Wheel Kit for Greater Flexibility
An optional extension plate can increase the effective compaction width, while a wheel set makes short-distance machine movement easier. These options allow the TRP170 to be configured according to different jobsite and transportation requirements.
CARACTÉRISTIQUES
| Centrifugal Force | kN | 30 |
| Compaction Depth | cm | 45 |
| Plate Size (L × W) | mm | 700 × 500 |
| Frequency | Hz | 70 |
| Max. Travelling Speed | m/min | 18 |
| Packing Size | mm | 820 × 430 × 1090 |
| Engine Manufacturer | — | HONDA |
| Engine Model | — | GX270 |
| Rated Power | hp | 9 |
| Operating Weight | kg | 170 |
*REMARQUE : Les spécifications et les configurations sont susceptibles d’être modifiées sans préavis en raison des mises à jour et améliorations continues apportées au produit. Toutes les informations sont données à titre indicatif uniquement, et certaines fonctionnalités sont optionnelles. Veuillez contacter notre équipe commerciale internationale pour confirmation. Les spécifications et configurations définitives seront celles figurant dans le contrat officiel signé par les deux parties.
Présentation du produit
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
