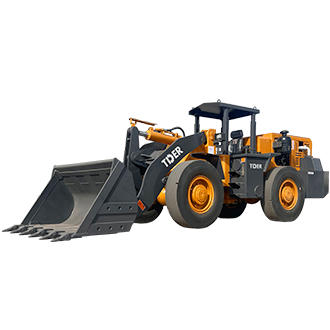

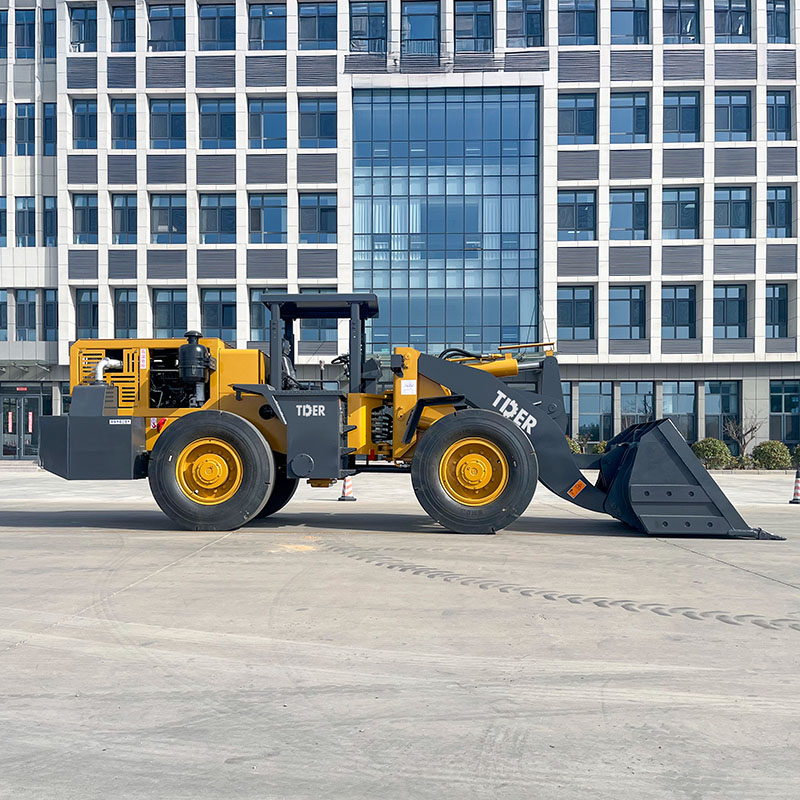

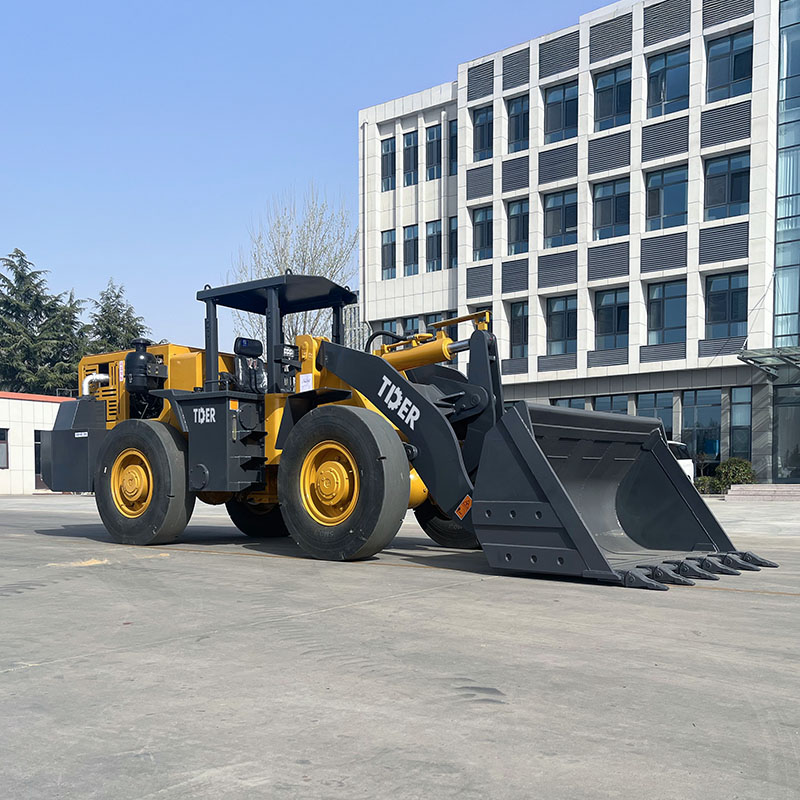

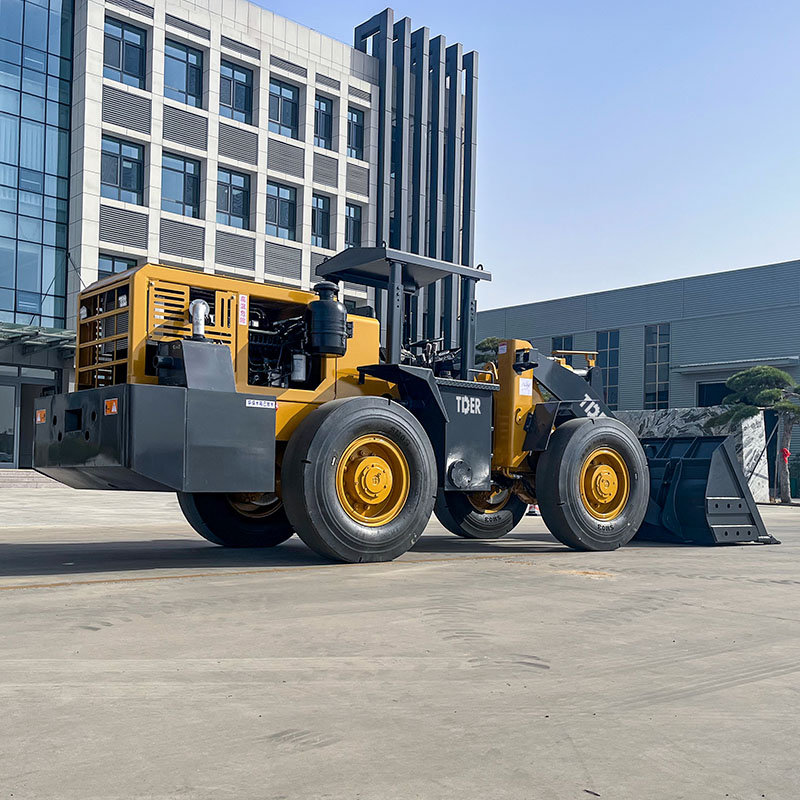

3.5 Ton Underground Loader
ZT930U
Caractéristiques
WEICHAI DEUTZ Engine for Reliable Loading Power
The ZT930U is powered by a 92 kW WEICHAI DEUTZ WP6G six-cylinder engine, providing the power reserve needed for repeated loading and short-distance material handling underground. YUCHAI and Cummins engine options are also available for customers with different powertrain preferences.
Matched Torque Converter and Transmission for Smooth Loading
A SHANTUI YJ315 torque converter works with the BYD4208 transmission gearbox to deliver smooth power transfer during loading and travel. The matched drivetrain helps the single-boom loader maintain controlled movement when approaching the pile, filling the bucket and carrying material away from the loading point.
Protected Braking for Controlled Underground Travel
The ZT930U uses an air-over-hydraulic braking system with caliper brakes and brake protection, providing controlled stopping during underground operation. A wet brake axle is available for applications requiring an alternative braking configuration.
Mining-Specific Axle with Automatic Bucket Leveling
The YUNYU ZL30 wheel reduction axle is developed for mining machinery applications, while the automatic bucket leveling function helps return the bucket to a consistent position after loading. This can make repeated loading cycles easier for the operator and reduce unnecessary bucket adjustment.
Built-In Protection for Demanding Work Cycles
An overload protection system, protected disc brakes, LED front and rear lights and an alarm lamp are integrated into the machine to support safer and more controlled operation. These features are particularly useful when the machine is repeatedly working under demanding underground conditions.
Water-Based Exhaust Cleaning for Confined Work Areas
The ZT930U uses a water-based exhaust gas cleaning system to treat engine exhaust before it enters the working environment. An optional oxidation catalyst device from Canada is also available, giving customers an additional exhaust-treatment configuration for underground applications.
Configurable Attachments for Different Coal-Mine Tasks
The ZT930U can be configured with joystick control, wheel protection chains, smooth anti-puncture narrow tires, a side-dump bucket, breaking hammer or narrow bucket without teeth. These options allow the same coal mine loader platform to be adapted to different tunnel widths, ground conditions and material-handling requirements.
CARACTÉRISTIQUES
| Main Specifications | Bucket Capacity | m³ | 2 |
| Rated Load Capacity | t | 3.5 | |
| Operating Weight | t | 10 | |
| Arm Lifting Time | s | ≤6 | |
| Total Cycle Time (Three Operations) | s | ≤11 | |
| Forward Gear | km/h | I: 0–7.0; II: 0–12.5; III: 0–21; IV: 0–35 | |
| Reverse Gear | km/h | I: 0–14; II: 0–25 | |
| Maximum Gradeability | ° | 30 | |
| Dimensions | Overall Dimensions (L × W × H) | mm | 6760 × 1900 × 2350 |
| Wheelbase | mm | 2700 | |
| Wheel Tread | mm | 1580 | |
| Maximum Dumping Height | mm | 2740 | |
| Dumping Reach | mm | 1070 | |
| Engine | Engine Model | — | WEICHAI DEUTZ WP6G125E23 |
| Engine Type | — | Inline, Water-Cooled, 4-Stroke, 6-Cylinder, Direct-Injection | |
| Rated Power | kW | 92 | |
| Rated Speed | rpm | 2300 | |
| Total Cylinder Displacement | L | 5.9 | |
| Starting System | — | Electric Start | |
| Transmission | Torque Converter Model | — | SHANTUI YJ315 |
| Torque Converter Type | — | Single-Stage, Three-Element | |
| Gearbox Model | — | SHANTUI BYD4208 | |
| Gearbox Type | — | Fixed Countershaft, Powershift | |
| Axle & Tires | Axle Model | — | YUNYU ZL30, Reinforced for Mining |
| Main Reducer Type | — | Single-Stage Spiral Bevel Gear | |
| Final Reducer Type | — | Single-Stage Planetary | |
| Tire Size | — | 17.5-25 | |
| Hydraulic System | Working Pump Model | — | CBG2100 |
| Nominal Displacement | mL/r | 100 | |
| Working System Pressure | MPa | 20 | |
| Multi-Way Directional Valve | — | DF25.2 | |
| Rated Flow | L/min | 160 | |
| Steering System | Steering Type | — | Load-Sensing Hydraulic Steering |
| Steering Pump Displacement | mL/r | 55 | |
| Maximum Input Pressure | MPa | 11 | |
| Brake System | Service Brake Type | — | Air-over-Hydraulic Brake |
| Parking Brake Type | — | Band Brake |
*REMARQUE : Les spécifications et les configurations sont susceptibles d’être modifiées sans préavis en raison des mises à jour et améliorations continues apportées au produit. Toutes les informations sont données à titre indicatif uniquement, et certaines fonctionnalités sont optionnelles. Veuillez contacter notre équipe commerciale internationale pour confirmation. Les spécifications et configurations définitives seront celles figurant dans le contrat officiel signé par les deux parties.
